Flexible Dual-Camera Video Endoscope “GTD6.0/DUAL VISION”

COBB ENDOSCOPI INDUSTRIALI

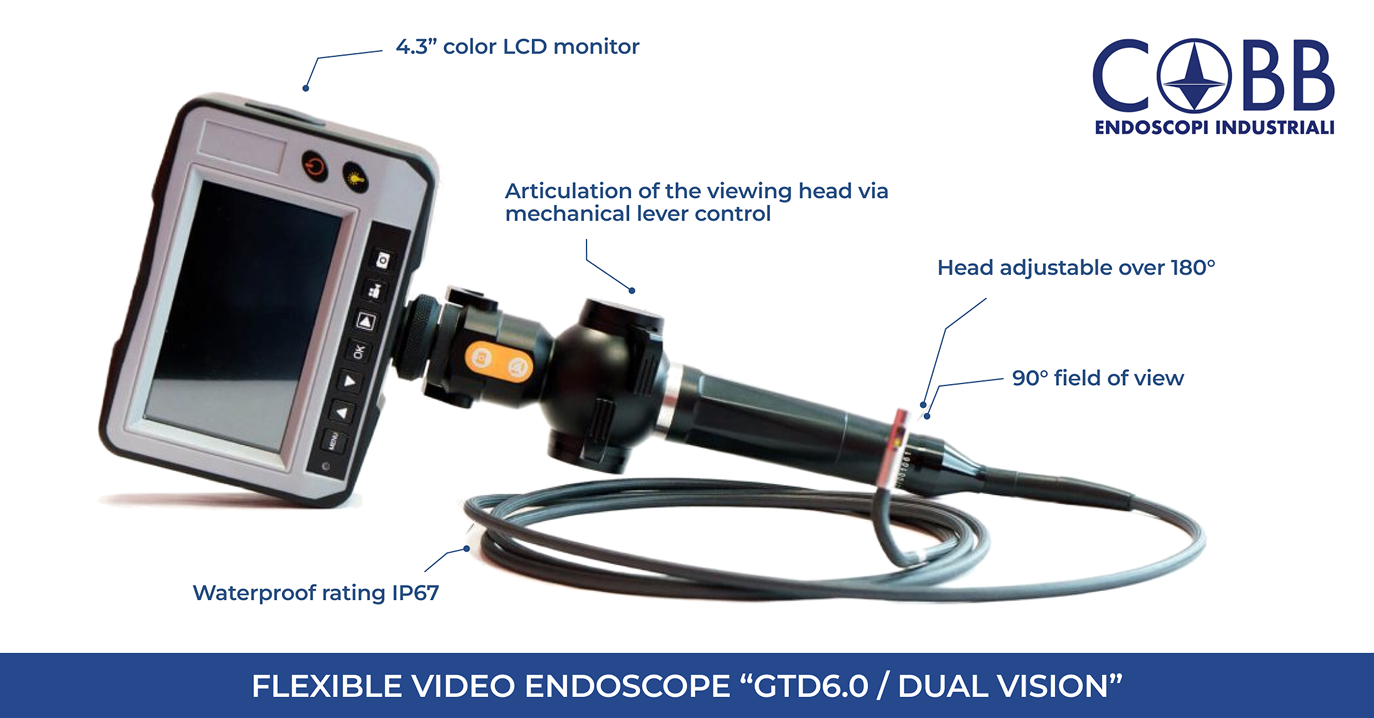

GTD6.0 / DUAL VISION – Articulating Flexible Video Endoscope

Front and side view in a single instrument

The COBB Fibre Ottiche GTD6.0 / DUAL VISION flexible video endoscope is designed to provide more complete visual inspection capabilities, reducing inspection time and minimizing probe repositioning during operation.

With a 6.0 mm diameter and probe lengths ranging from 1.5 to 10 meters, it is an ideal solution for industrial inspections where both frontal and lateral viewing inside pipes, cavities and complex components is required.

The four-way articulating inspection tip, with articulation exceeding 180°, allows effective retrograde viewing, improving inspection of bends, internal walls and areas that are not directly visible.

The rotatable and detachable monitor makes the system modular, allowing the connection of different probes and providing greater operational flexibility across multiple applications.

Recommended whenever complete internal visibility is required without compromising flexibility, control and operational continuity.

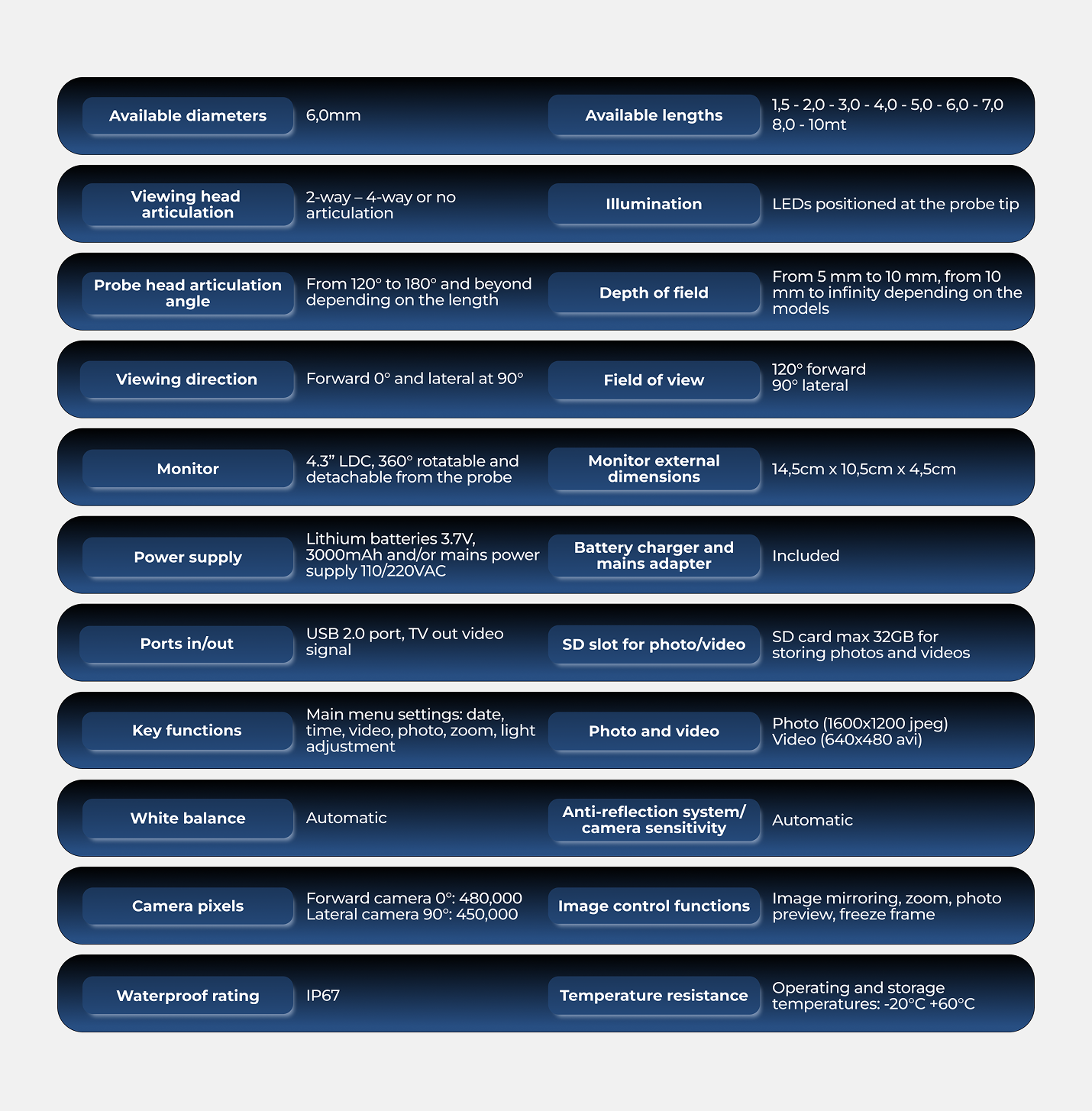

DOWNLOAD SCHEDA TECNICA

Key Features

Ergonomic design, easy and intuitive to operate.

Instrument specifically designed for the inspection of industrial pipelines and confined spaces, ideal for detecting cracks, foreign objects, wear conditions, weld inspections and the verification of internal components that are not directly accessible.

The materials used in the construction of the “GTD” series video endoscopes follow advanced engineering design principles and feature a highly wear-resistant tungsten braided sheath, designed to withstand difficult and extreme working conditions.

Next-generation high-efficiency LED illumination, combined with four-way mechanical articulation and bending angles exceeding 180° (retrograde view), position the “GTD” series at the top of its category.

The system features a 4.3” color LCD display with anti-glare screen technology and integrated image optimization functions, ensuring clear viewing even under critical lighting conditions.
Advanced onboard software includes multiple image processing and enhancement functions.

The COBB Fibre Ottiche “GTD6.0 / DUAL VISION” flexible video endoscope is equipped with two cameras: one for direct forward viewing at 0° and one for 90° side viewing, allowing the operator to quickly switch between viewing angles using the dedicated control button located on the instrument handle.

The 6 mm diameter “GTD6.0 / DUAL VISION” flexible video endoscope is available with probe lengths from 1.5 m up to 10 m and features a four-way articulating inspection tip.
