“RVM” Series Rigid Video Endoscopes

The new RVM series represents a major step forward in industrial inspection: high-performance rigid instruments engineered to withstand the harshest environments while delivering superior image quality.

Key Features

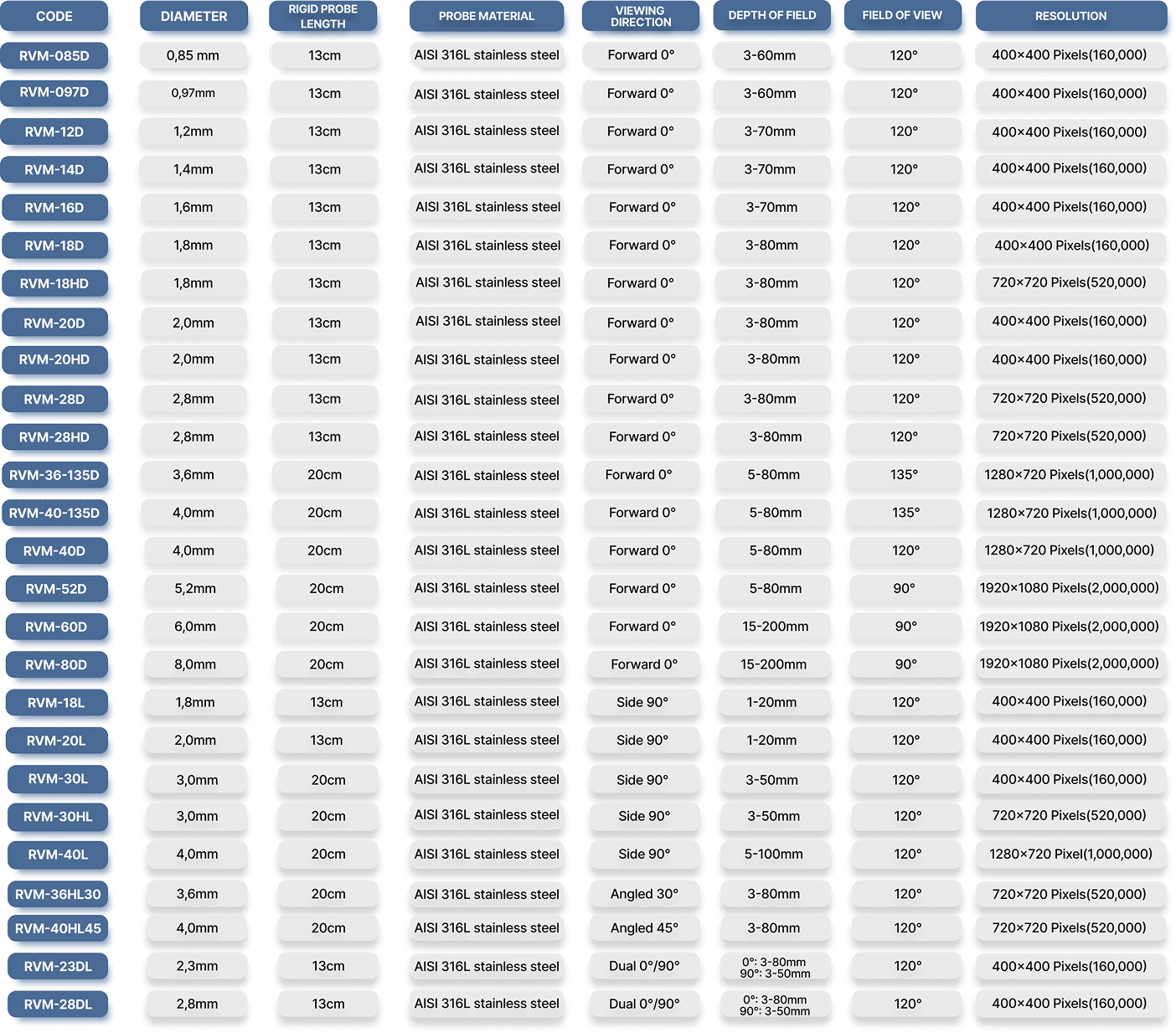

Wide range of diameters

Available from 0.8 mm up to 8.0 mm, with forward-view (0°), side-view (90°) or dual-camera configurations (0° and 90°).
30° and 45° viewing angles are also available.

Optimized image quality

Advanced image adjustment functions including gamma correction, gain control, sharpness enhancement, noise reduction, white balance, chromaticity and contrast adjustment.

Annotation and measurement functions

Ability to insert text notes or graphic markings directly onto the image, with integrated crosshair ruler for object size estimation.

Instant sharing and connectivity

HDMI output and Wi-Fi connectivity for real-time transfer, sharing and external display viewing.

Advanced Illumination System

The RVM series utilizes high-brightness fiber optic illumination, offering superior reliability and brightness compared to conventional front LED systems.

UV and IR illumination sources are also available for specialized applications such as micro-crack detection and inspections in complete darkness.

Modular Design

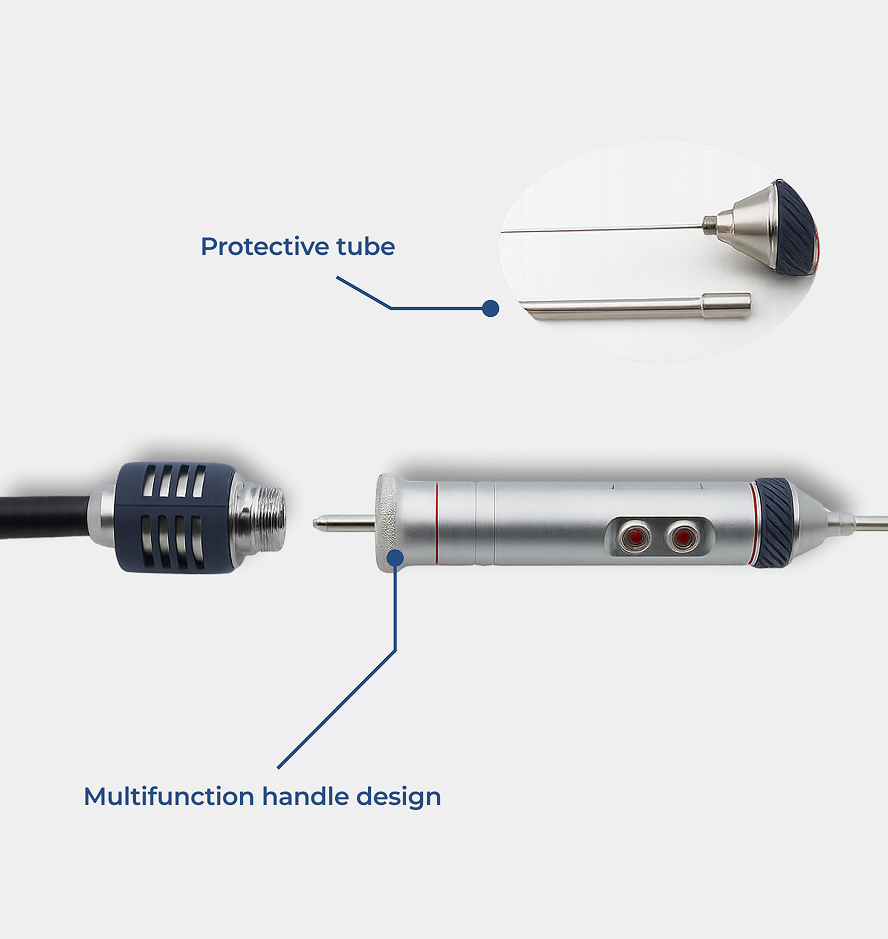

• Detachable handle and 270° rotatable rigid tube for maximum operational flexibility

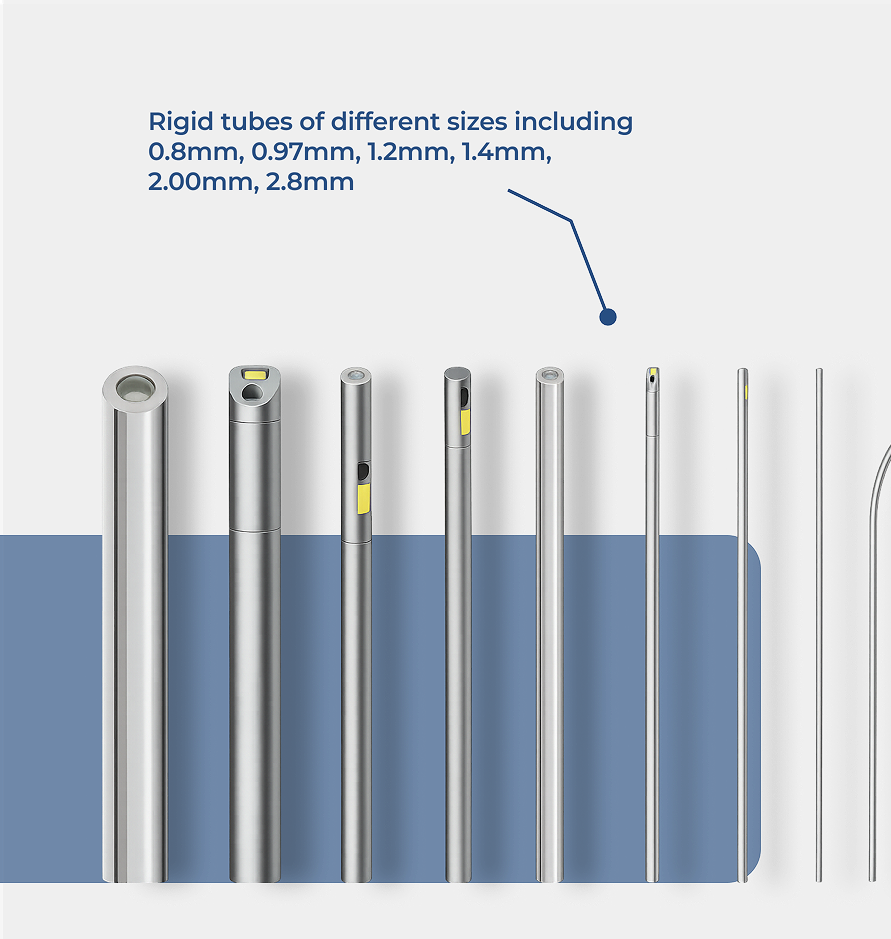

• Small-diameter rigid tubes (from 0.8 mm to 2.8 mm) ideal for extremely small access holes
• 6 mm and 8 mm versions equipped with Full HD 2MP cameras for enhanced image detail
• Fully customizable configurations including lengths, diameters, resolutions, fields of view and illumination systems

Typical Applications

• Aerospace maintenance
• Precision mechanical component inspection
• Firearm barrel and security system inspection
• Industrial pipeline and plant verification

👉 The RVM series represents a true evolution in rigid video endoscopy: combining robustness, advanced image quality, dedicated illumination systems and modern connectivity within a single professional inspection platform.
