“SIRIUS” RIGID ENDOSCOPES FOR ULTRAVIOLET INSPECTIONS

Originally developed for FPI inspection of aircraft engines, these “SIRIUS” rigid endoscopes are equipped with an optical system capable of generating high-resolution images and an illumination device designed to deliver high-power UV light.

Both of these features, initially essential for aircraft engine FPI inspections, are now widely used across multiple mechanical and industrial sectors where non-invasive and non-destructive inspections assisted by ultraviolet light are required.

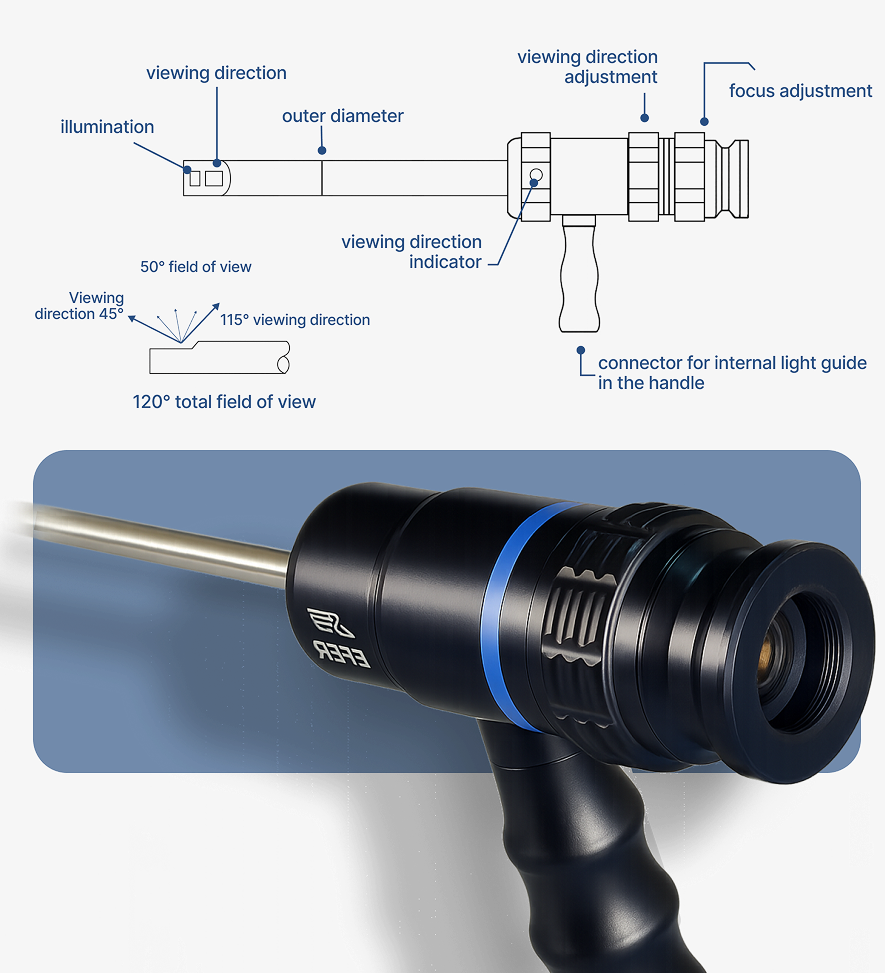

Key Features

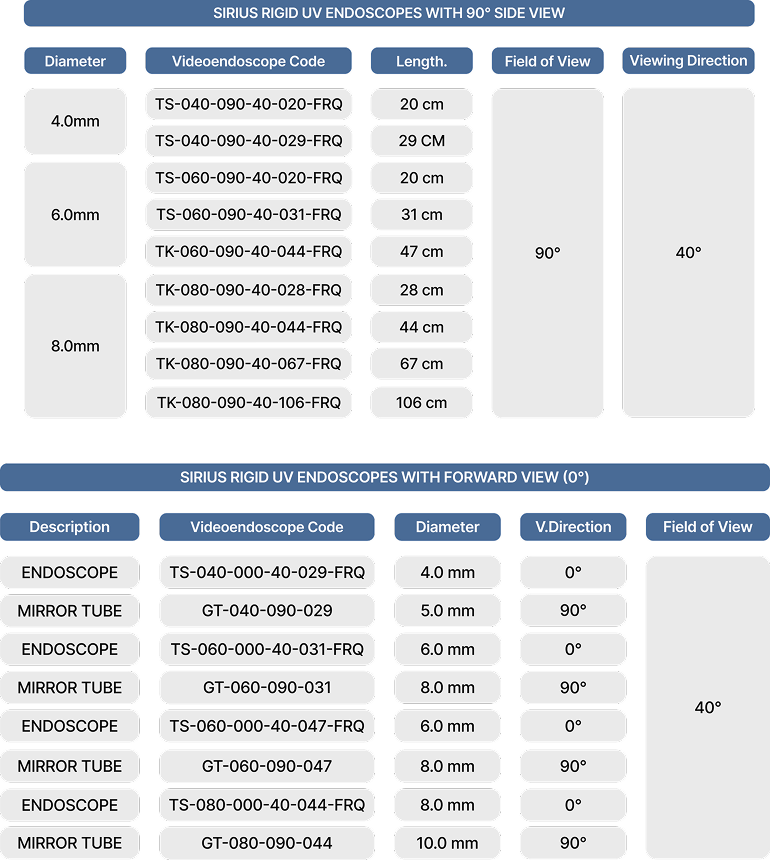

  • Available diameters: 4 mm, 6 mm, 8 mm (12 mm and 19 mm available upon request)
  • Focus adjustment from 5 mm to infinity
  • Viewing direction rotatable panoramically through 370°
  • Touch orientation indicator display
  • Ergonomic handle
  • Computer-optimized optical system
  • Optical components specifically engineered for each individual diameter
  • Wide range of viewing direction options
  • Stainless steel outer insertion tube
  • Waterproof and fully immersible along the entire working length
  • Precise optical fiber illumination ratio optimized according to lens diameter
  • Latest-generation achromatic optics with extremely low light attenuation
  • Connection capability to cameras and video systems via dedicated adapters
  • Highly impact-resistant PVC carrying case

All rigid endoscopes are equipped with a standard 32 mm eyepiece that allows connection to the MUCAM T900 camera equipped with a UV lens, with the possibility to choose between the FLASHPACK 900, TIVE 900 MK2, EVS 900 MK2 or TITAN operating units.
