“SIRIUS” RIGID ENDOSCOPES WITH ADJUSTABLE VIEWING DIRECTION

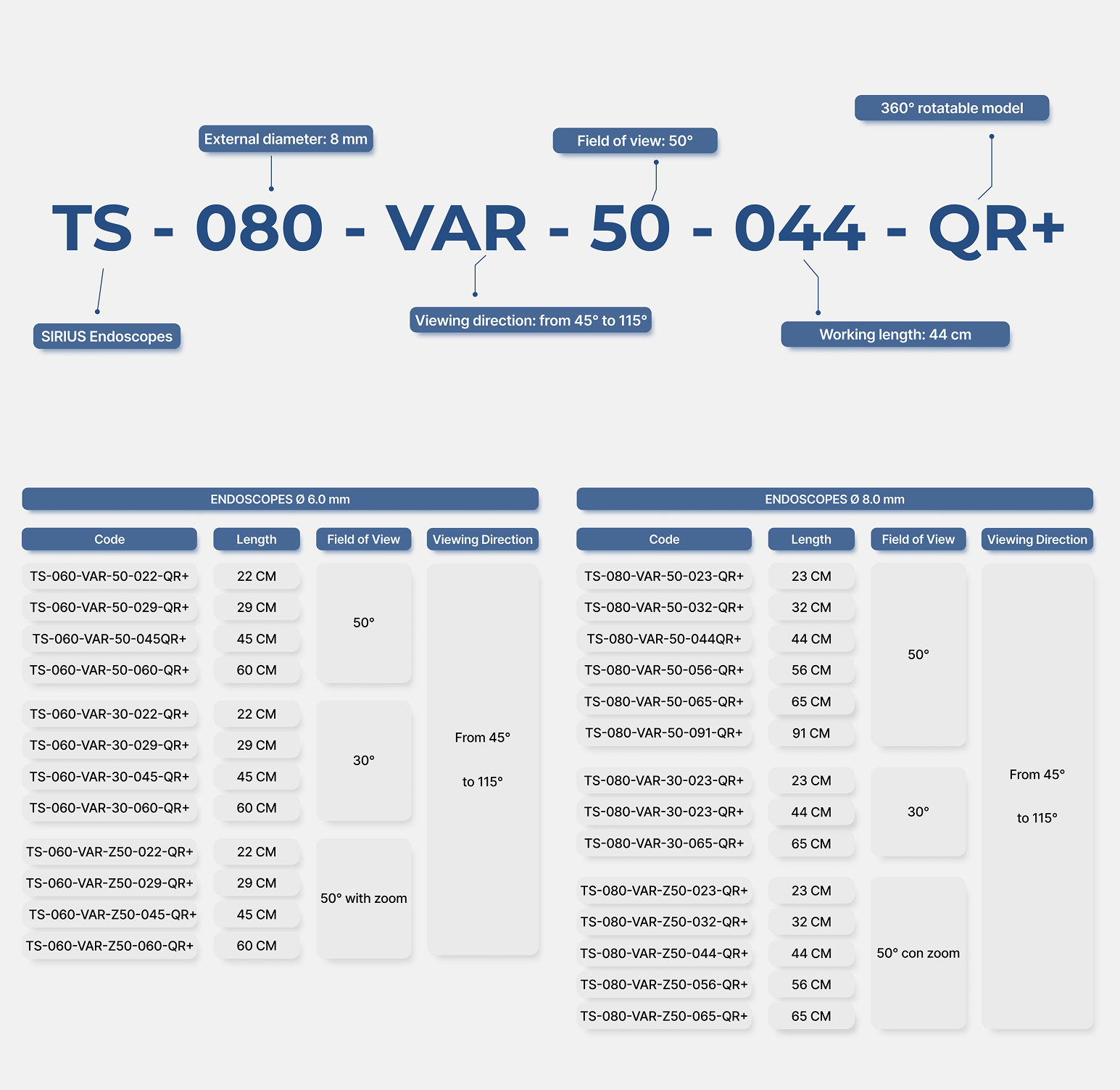

This “SIRIUS” rigid endoscope model is supplied as standard in 6 mm and 8 mm diameters, with different working lengths available.

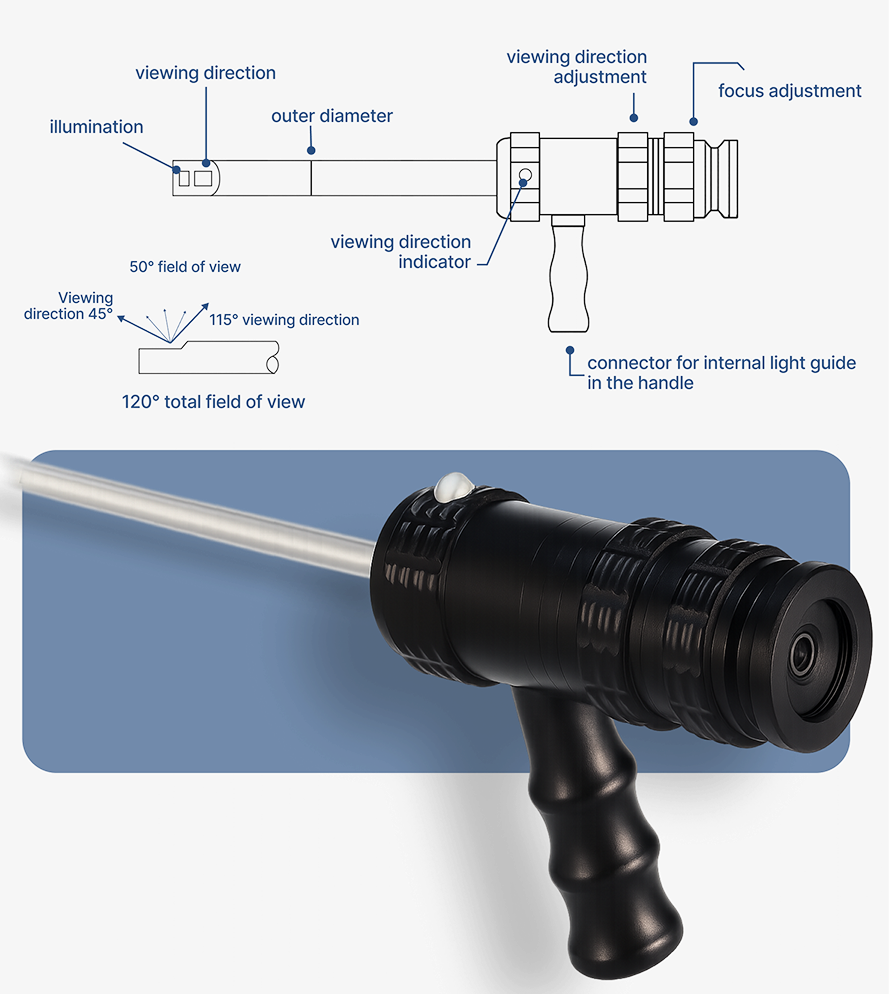

During inspection, the viewing direction can be adjusted from direct forward view at 45° up to retrograde view at 115°.

Key Features

  • Adjustable viewing direction from direct forward view at 45° to retrograde view at 115°
  • Total visible viewing field through adjustment: 120°
  • Fixed observation viewing field: 50°
  • Focus adjustment from 5 mm to infinity
  • Viewing direction rotatable panoramically through 370°
  • Touch orientation indicator display
  • Ergonomic handle
  • Computer-optimized optical system
  • Optical components specifically engineered for each individual diameter
  • Wide range of viewing direction options
  • Stainless steel outer insertion tube
  • Waterproof and fully immersible along the entire working length
  • Precise optical fiber illumination ratio optimized according to lens diameter
  • Latest-generation achromatic optics with extremely low light attenuation
  • Connection capability to cameras and video systems via dedicated adapters
  • Highly impact-resistant PVC carrying case
