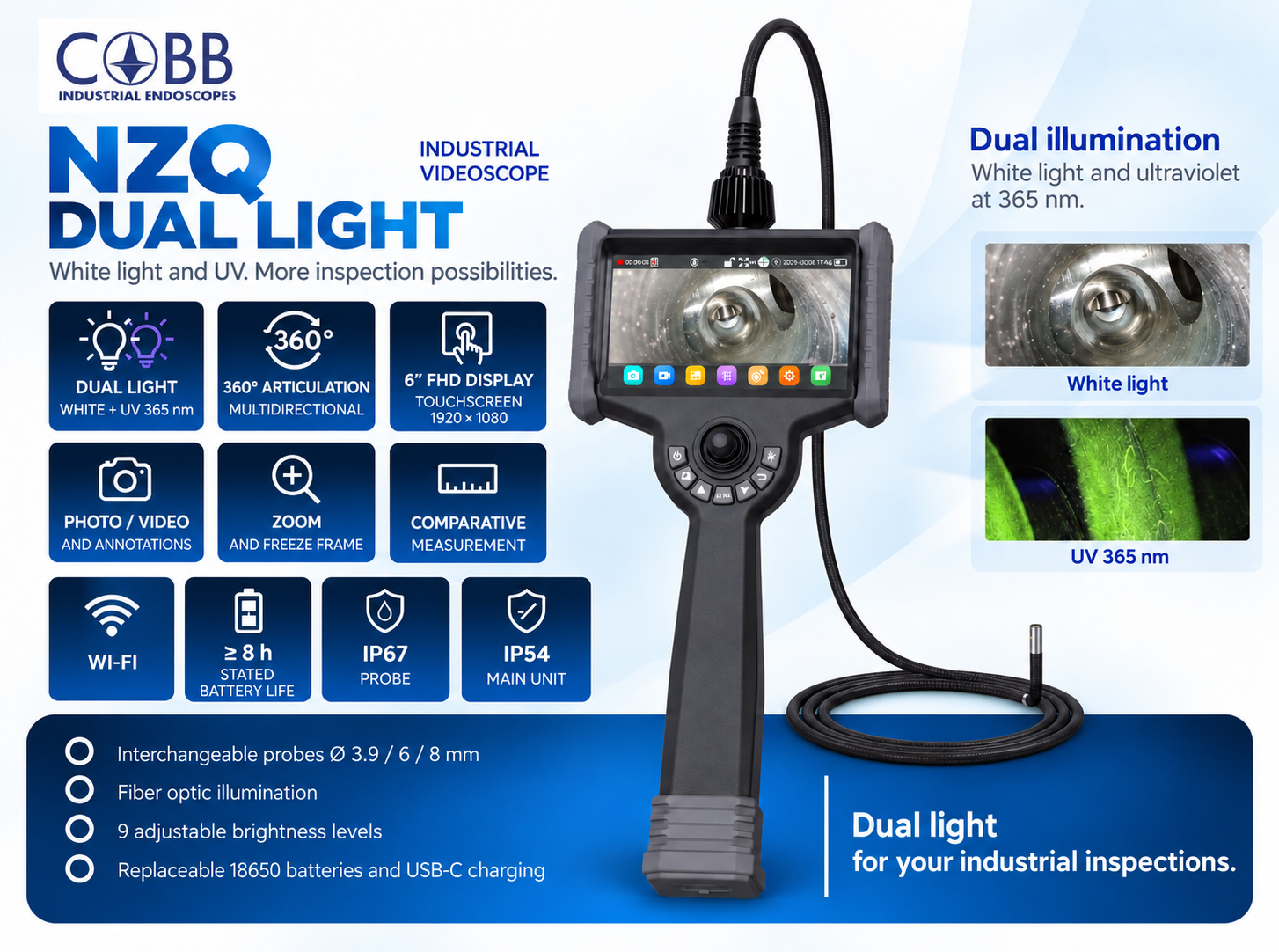

COBB NZQ Dual Light combines dual illumination, interchangeable probes and inspection documentation tools in a portable system with a touchscreen, joystick and physical buttons.

Key features:

• DUAL WHITE LIGHT AND 365 nm ULTRAVIOLET ILLUMINATION.

• FIBRE OPTIC ILLUMINATION with a high-power rear-mounted LED source.

• NINE ADJUSTABLE BRIGHTNESS LEVELS to adapt the lighting to viewing conditions.

• QUICKLY INTERCHANGEABLE PROBES in Ø3.9 mm, Ø6.0 mm and Ø8.0 mm diameters.

• 6-INCH TOUCHSCREEN with 1920 × 1080 resolution.

• HIGH-DEFINITION CAMERA WITH A RESOLUTION OF AT LEAST 1 MEGAPIXEL.

• 360° MULTIDIRECTIONAL ARTICULATION with a maximum bending angle of at least 180°.

• HIGH-DENSITY BRAIDED TUNGSTEN SHEATH and IP67 probe protection.

• PHOTO AND VIDEO CAPTURE, FREEZE FRAME, MAGNIFICATION AND IMAGE FLIP directly on the unit.

• COMPARATIVE MEASUREMENT using a dimensional reference.

• ANNOTATIONS, MARKINGS, WATERMARKS AND A CUSTOM LOGO on images.

• WIRELESS Wi-Fi CONNECTIVITY and TF, HDMI, USB-C and AUX connections.

• BUILT-IN MEMORY AND A 32 GB TF CARD, with support for cards up to 128 GB and the option to connect external USB storage.

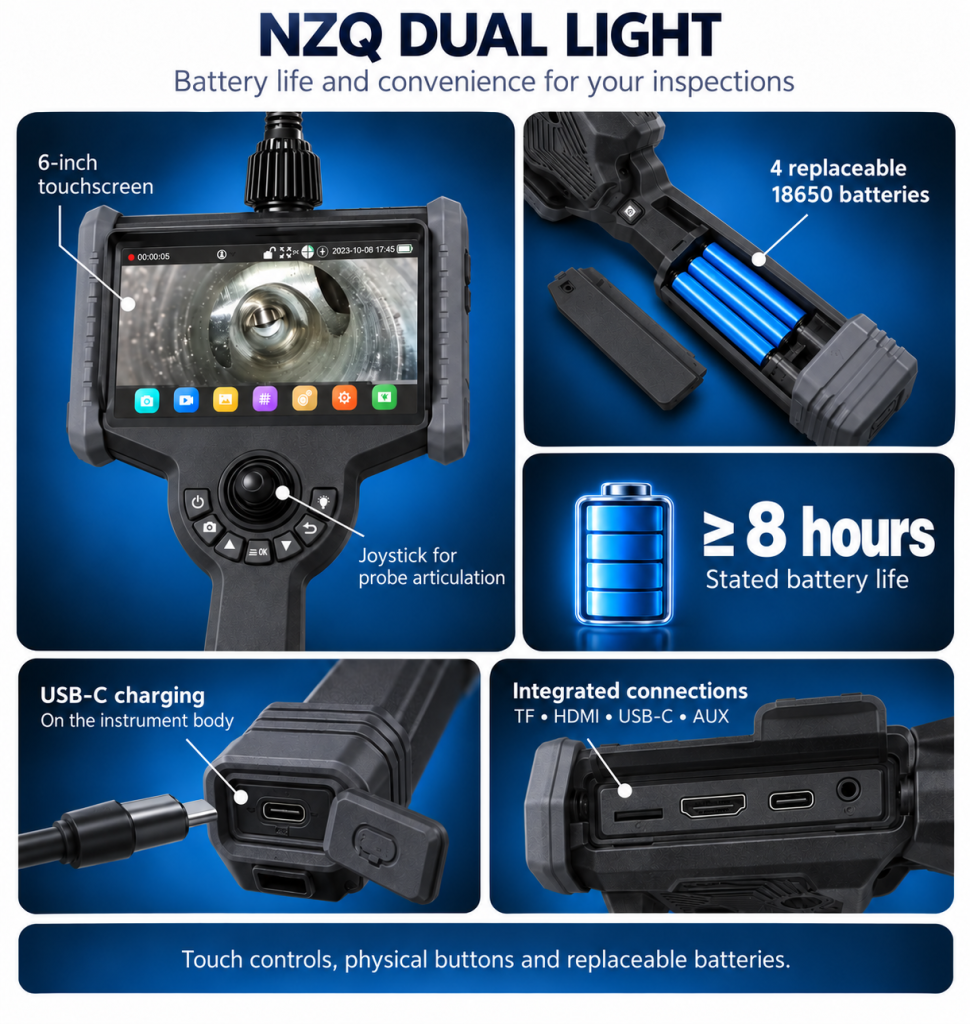

• FOUR REPLACEABLE 18650 BATTERIES, with a stated operating time of at least 8 hours and USB-C charging.

• IP54 PROTECTION FOR THE MAIN UNIT.

Dual illumination: white light and 365 nm ultraviolet light

The NZQ Dual Light configuration combines white light and ultraviolet light at a wavelength of 365 nm, providing two illumination modes to suit inspection requirements.

The high-power LED source is mounted at the rear and transmits light through optical fibres. Nine adjustable brightness levels allow the illumination to be adapted to the surface and viewing conditions.

The range also includes white-light-only configurations; the NZQ Dual Light version includes both white light and ultraviolet sources.

Quickly interchangeable probes

The probe assembly detaches from the main unit, allowing the configuration to be changed to suit the working environment.

Available diameters:
Ø3.9 mm · Ø6.0 mm · Ø8.0 mm

Lengths:
From 1 to 3 metres, with custom options available on request.

Optical options include fields of view of 90°, 120° or 140° and depths of field from 10 to 200 mm or from 50 mm to infinity, to be selected when specifying the configuration. The viewing direction is forward.

The high-density braided tungsten sheath provides corrosion resistance. The probe is IP67-rated and resistant to water and oil.

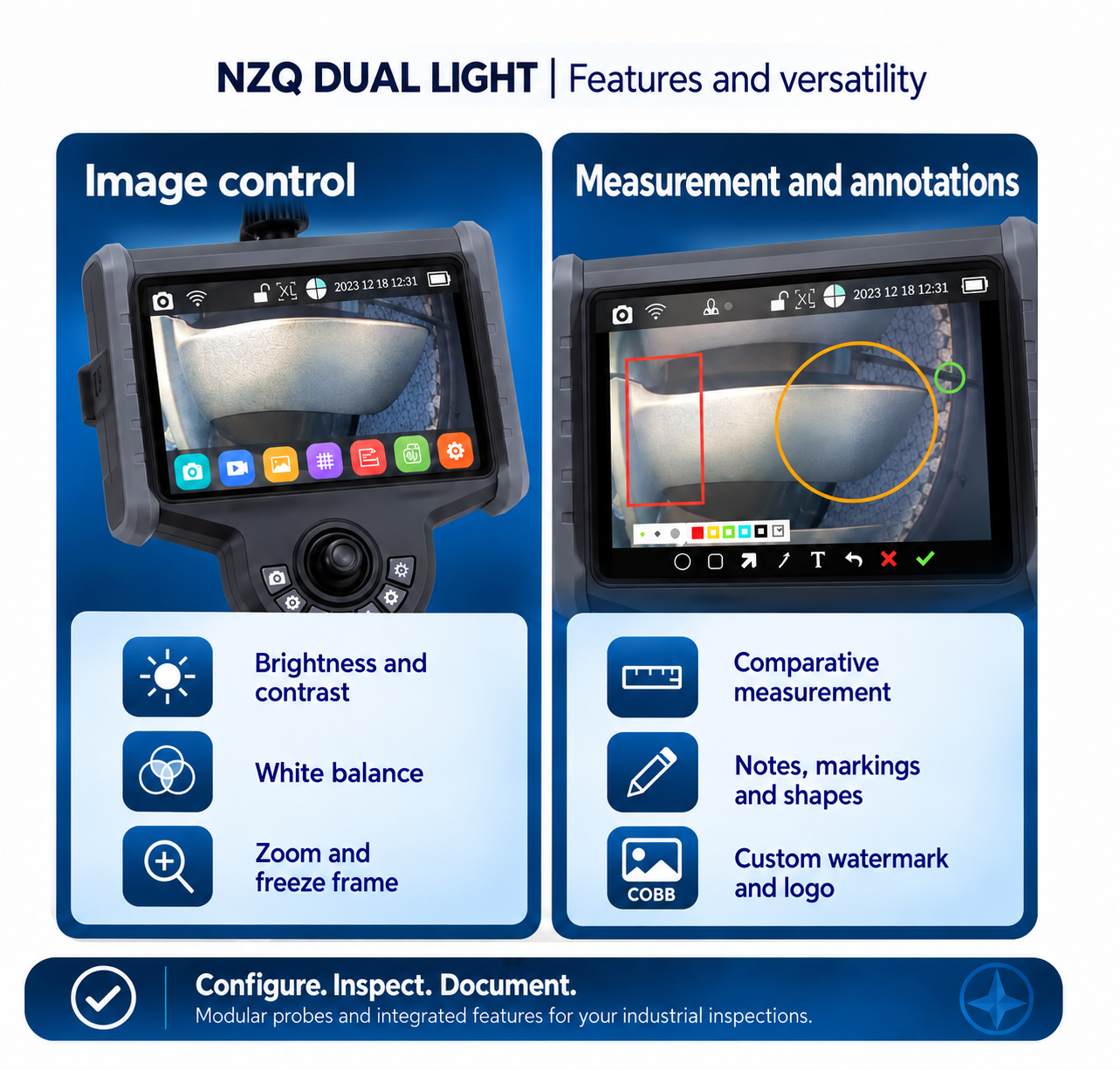

360° articulation and image control

The 360° multidirectional articulation, with a maximum bending angle of at least 180°, allows the probe tip to be positioned using the joystick.

The 6-inch touchscreen displays images at a resolution of 1920 × 1080. Touch controls are complemented by physical buttons for image capture, navigation, playback and brightness adjustment.

Camera settings include brightness, contrast, hue, sharpness, saturation, gamma, white balance and exposure.
