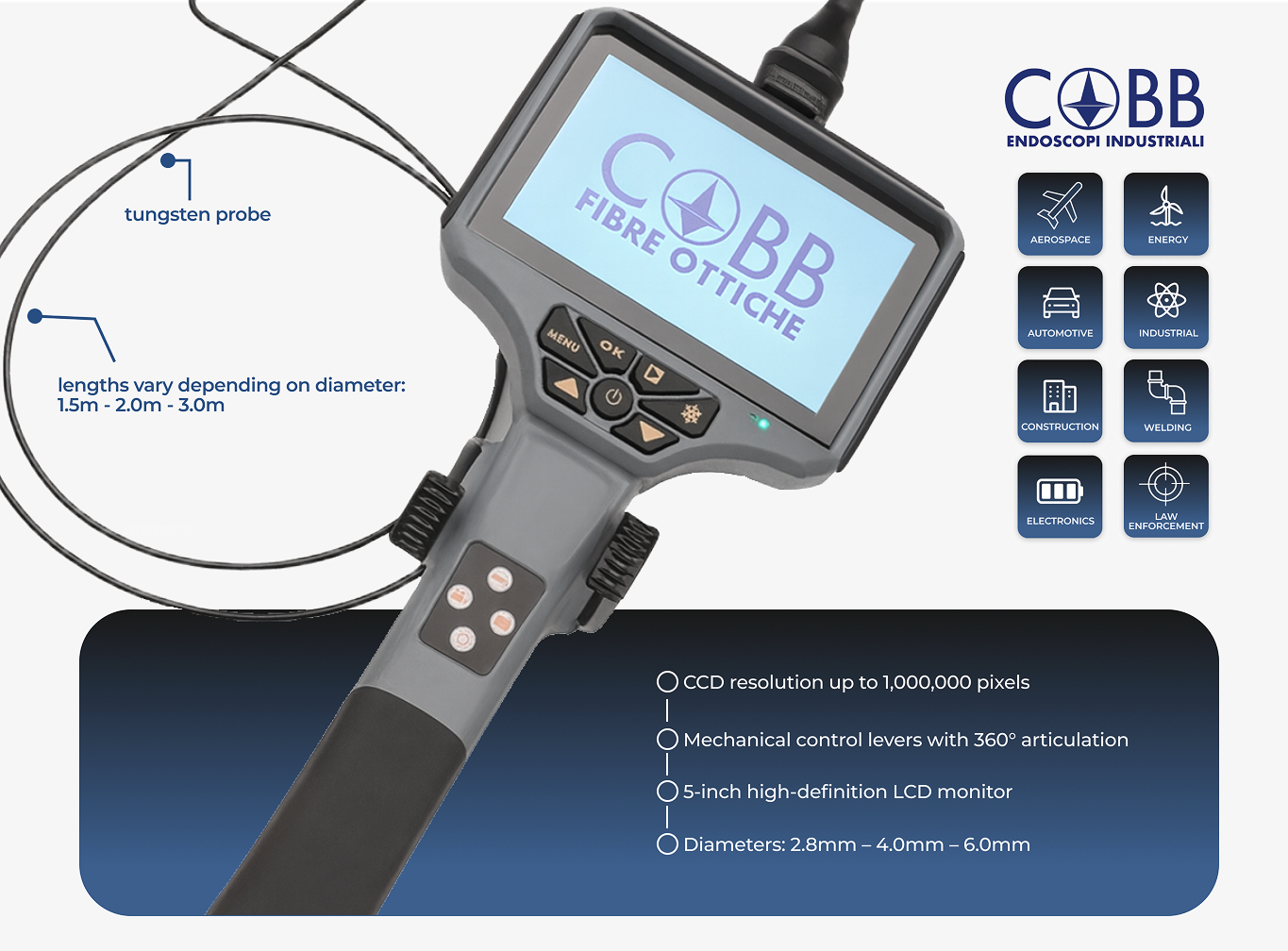

Technical Specifications – “PKD” High Definition HD Video Endoscope

• CCD resolution up to 1,000,000 pixels
• 5” high-definition LCD monitor
• Available diameters: 2.8 mm – 4.0 mm – 6.0 mm
• Available lengths depending on diameter: 1.5 m – 2.0 m – 3.0 m
• Net weight without probe: 0.8 kg
• Durable external housing with anti-corrosion and wear-resistant tungsten insertion tube

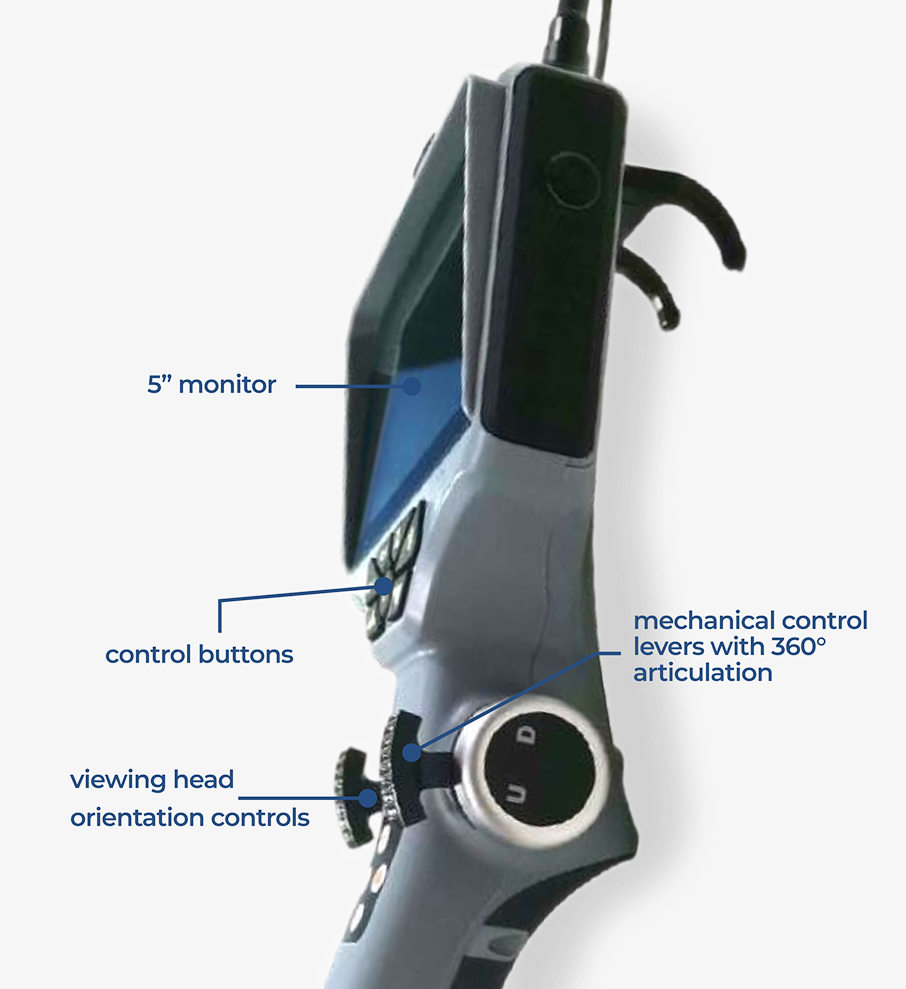

• Mechanical control levers with 360° articulation for easy and flexible operation
• Precision articulation adjustment system with brake lock for improved positioning control and viewing stability
• Adjustable white balance, AGC, exposure, image modes, monitor brightness, monitor contrast and screen ratio
• Rechargeable 4.2V 3350mAh lithium batteries
• Battery charger and video endoscope power supply 100–240V AC
• Output ports: HDMI, mini USB

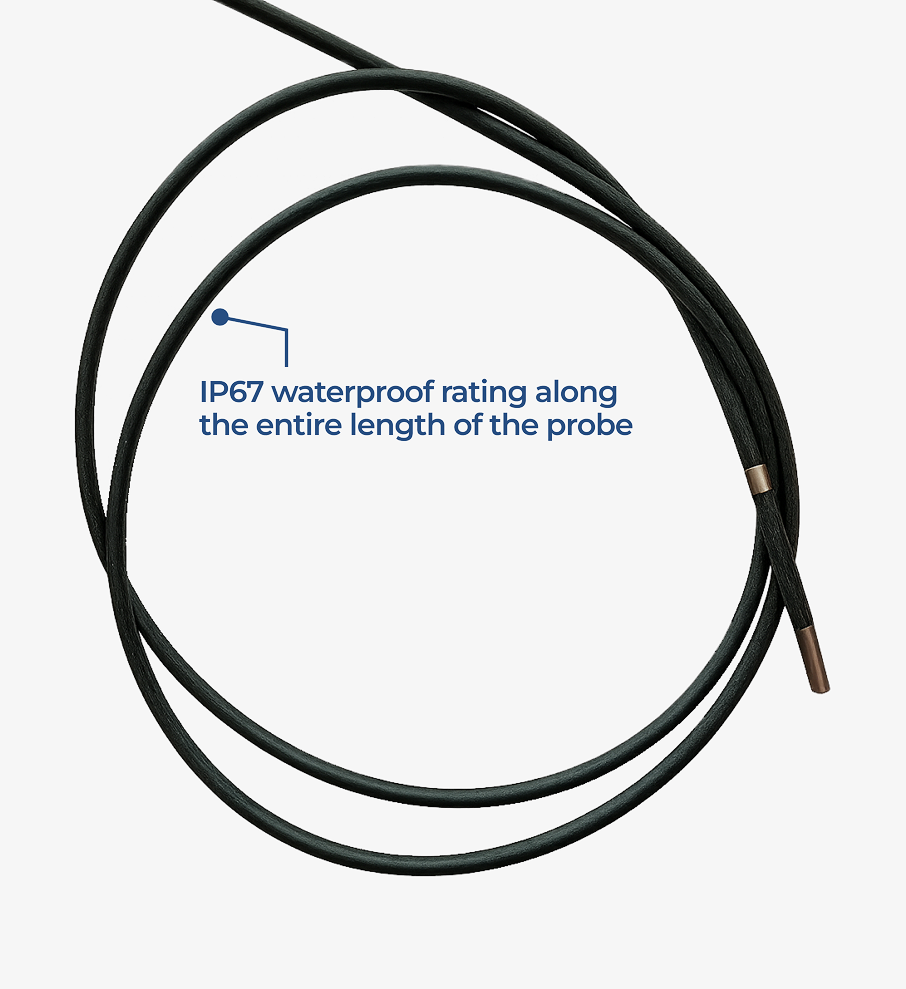

• IP67 waterproof protection along the entire probe length
