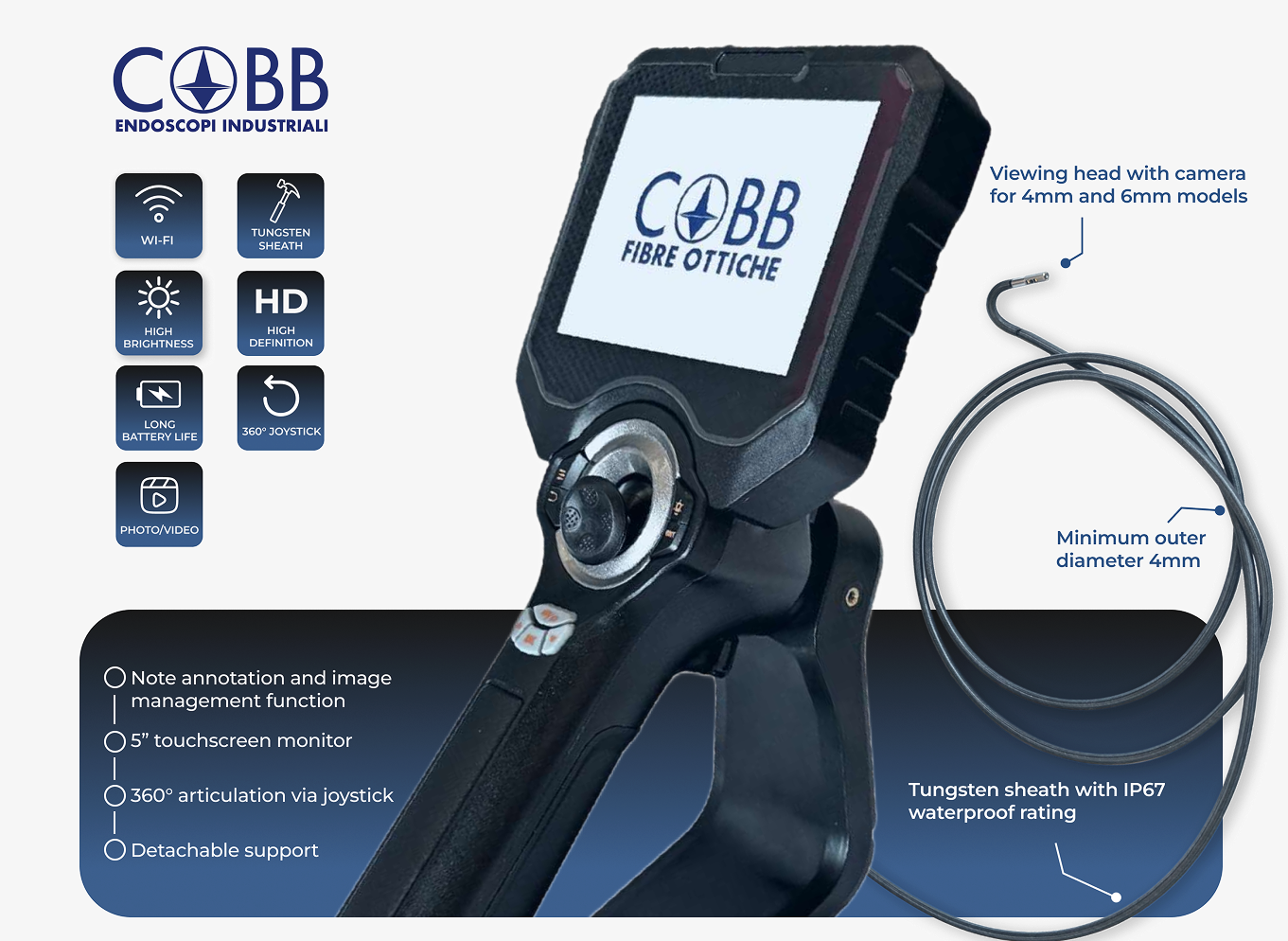

GRZ-IR + W Infrared and White Light Flexible Video Endoscope

The GRZ-IR + W is a professional flexible video endoscope designed for highly specialized security applications, where operations must be carried out in dark, confined or zero-visibility environments while maintaining maximum control, discretion and reliability.

This instrument is specifically intended for security forces, law enforcement agencies and operational units requiring advanced visual inspection systems for tactical, preventive and verification activities.

The GRZ-IR + W is primarily designed for:

Law enforcement agencies
Public and private security departments
Military and paramilitary units
Special operations teams
Inspection and control activities in sensitive environments

The combination of infrared vision and white light illumination, together with the articulating probe system, enables effective visual inspections without the need for opening, dismantling or direct operator exposure.

Available Probe Diameters and System Lengths

Probe diameters: Ø 4.0 mm · Ø 6.0 mm
Operating lengths: 1.5 m · 2.0 m · 3.0 m

Dedicated configurations can be evaluated upon request according to specific operational requirements.

DOWNLOAD TECHNICAL SHEET

Integrated Infrared and White Light Vision

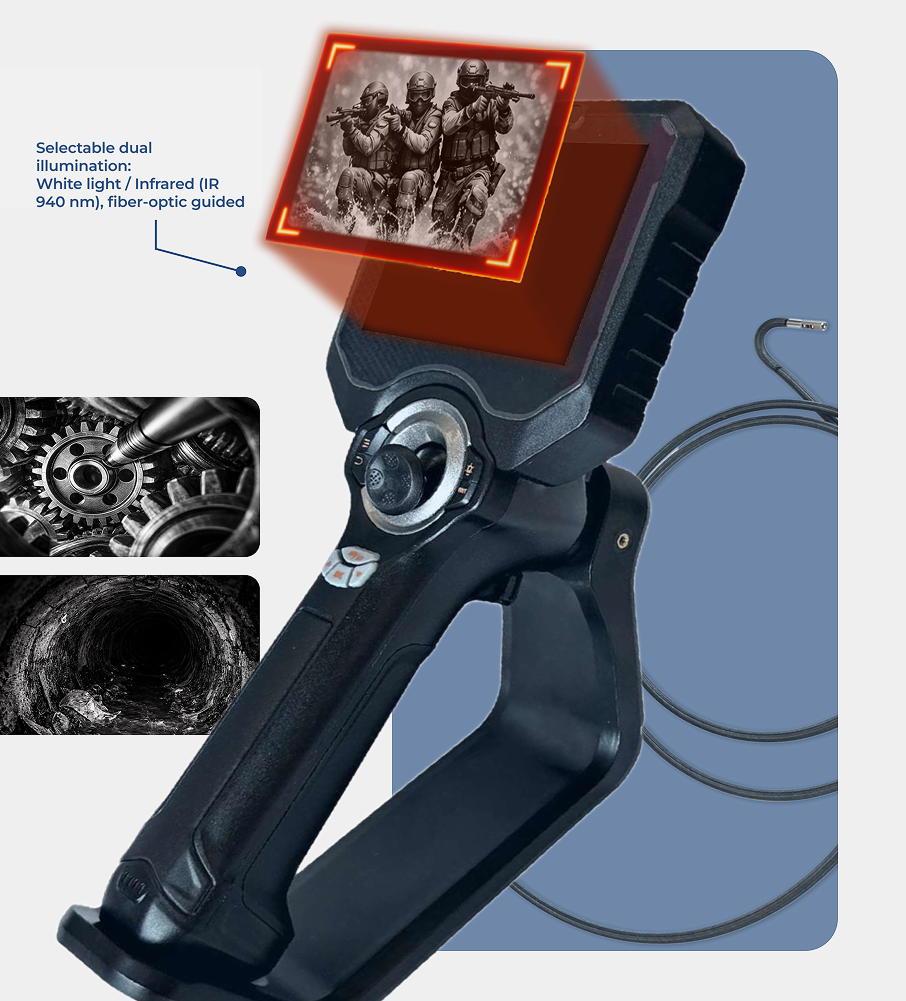

The GRZ-IR + White Light system integrates two selectable illumination modes: white light for standard visual inspection and infrared light (IR 940 nm) for operation in complete absence of visible light.

Switching between the two modes is performed via a dedicated control without interrupting the inspection process, allowing immediate image comparison.

This feature is essential in security operations, where discretion and visual control are critical elements.

Articulating Probe and Operational Control

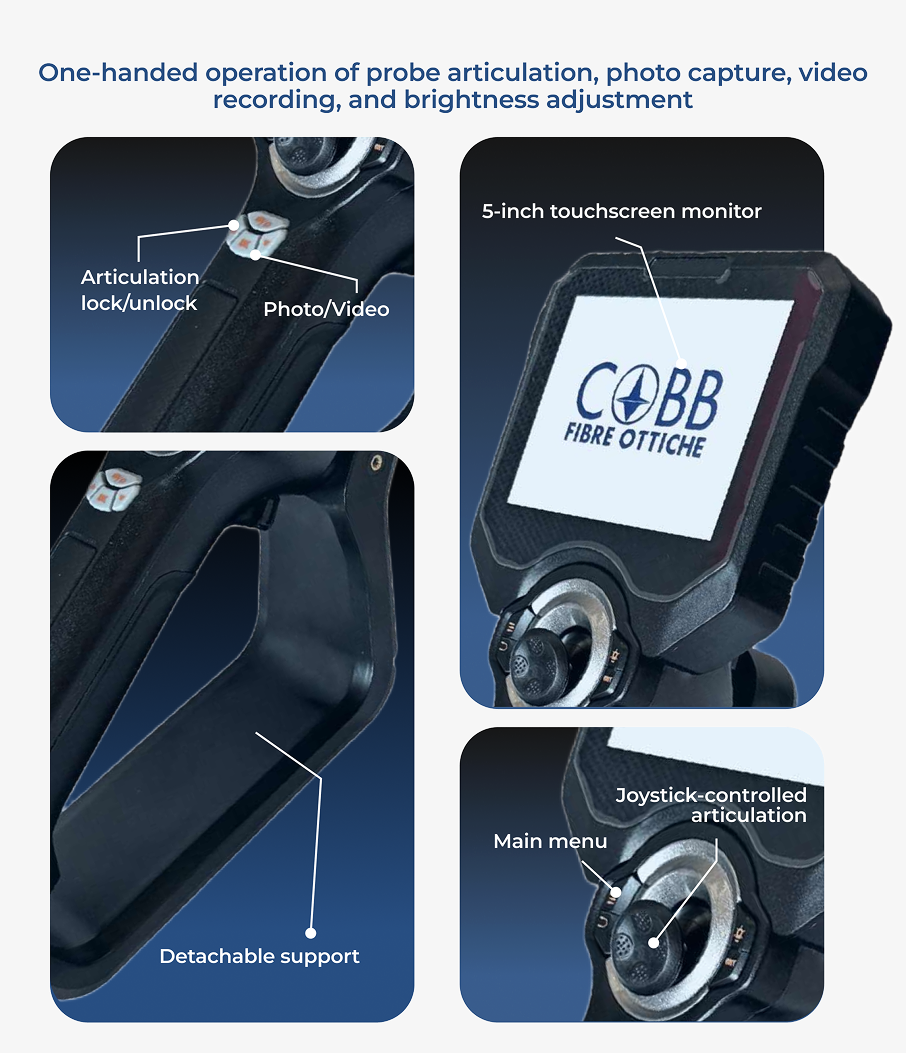

The flexible probe features full 360° articulation controlled through an ergonomic joystick, allowing precise positioning of the inspection tip inside cavities, hidden compartments and hard-to-access spaces.

The articulation lock system maintains a stable viewing angle during analysis and documentation activities.

Display and Documentation Functions

The system is equipped with a high-resolution 5” touchscreen display with both touch and physical controls.

It supports photo and video capture, digital zoom, image rotation, freeze-frame functions and dedicated image adjustments for complex surfaces, enabling immediate inspection documentation for operational reports and verification activities.

Connectivity and Data Management

Inspection data can be stored on Micro-SD cards or transmitted via HDMI output to external monitors, making the system ideal for real-time sharing during coordinated operations.

Robustness and Operational Reliability

Designed for demanding environments, the system features an IP67-rated insertion tube, heavy-duty construction, replaceable Li-ion battery, fast USB-C charging and operating autonomy suitable for extended operational sessions, ensuring maximum reliability and continuous performance.

Typical Applications

Inspection of cavities, concealed spaces and confined areas, preventive inspections in sensitive environments, visual verification in total darkness, security operations without direct operator exposure and tactical inspection activities.

Why Choose the GRZ-IR + W

Designed specifically for security and law enforcement applications, the GRZ-IR + W combines infrared vision and white light illumination in a single instrument, with compact diameters, articulating probe technology, immediate inspection documentation and professional-grade operational reliability.

Key Features

• Available diameters: 4.0 mm · 6.0 mm

• Probe lengths:
Ø 4.0 mm → 1.5 m / 2.0 m / 3.0 m
Ø 6.0 mm → 1.5 m / 2.0 m / 3.0 m

• Illumination system: Dual selectable illumination system – White Light / Infrared (IR 940 nm), fiber-optically guided

• IR / White Light switching: Direct selection via dedicated control without interrupting the inspection process

• Display: 5” high-resolution LCD touchscreen

• Data storage: Micro-SD card support

• Video output: HDMI connection for external monitors

• Illumination adjustment: 6-level brightness control via dedicated Dimmer button

• Zoom: Digital zoom with variable levels depending on system configuration

• Image rotation: 90° · 180° · 270° · mirror mode

• Image functions: Monochrome mode, negative mode, contrast adjustment, saturation control and white balance adjustment

• Probe articulation: 360° all-way articulation controlled via ergonomic joystick

• Probe position lock: Lock / Unlock button for articulation stabilization during inspection

• Wi-Fi connectivity: Real-time image transmission to mobile devices (available on dedicated versions)

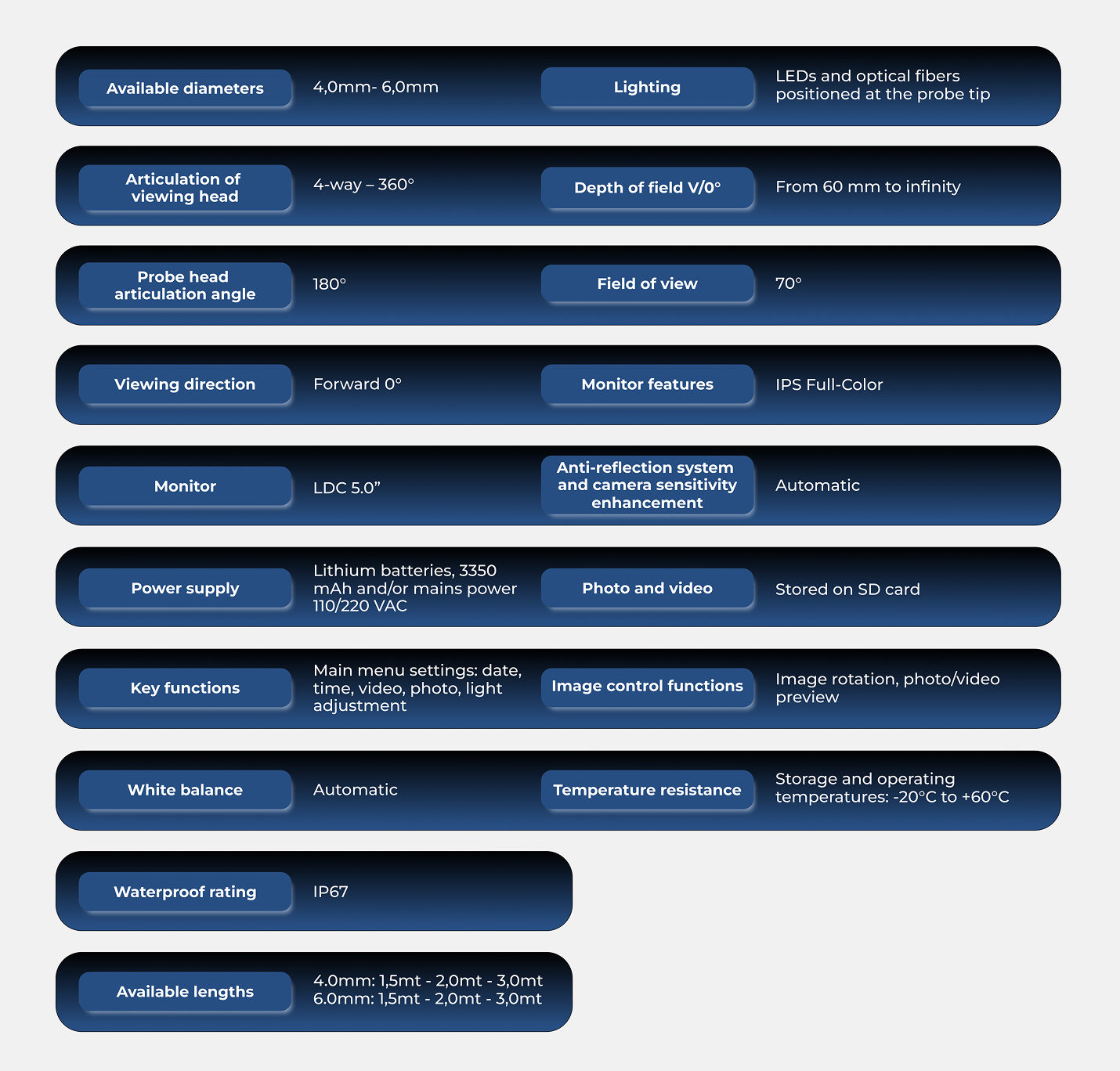

Technical Specifications

• Power supply: Replaceable Li-ion rechargeable batteries 18650 – 3350 mAh ×2

• Charging system: USB Type-C, 5 V / 2 A input

• Protection rating: IP67 (insertion tube and distal tip)

• Operating temperatures:
– Probe and distal tip: 0 ÷ 60 °C
– Main control unit: 0 ÷ 40 °C

• Operating humidity: 15 ÷ 90 % RH

• Total weight: 1.0 kg (including monitor and control unit)

Advanced Functions

• Photo and video recording: JPG and MP4 formats with Micro-SD storage

• Playback and file management: Direct viewing of photos and videos with annotation capability

• Visual measurement: Object size estimation using integrated digital ruler tool

• Graffiti mode: Drawing and annotation directly on images via touchscreen interface

Advanced Image Settings

• EV adjustment: Exposure control for optimized visibility under variable operating conditions

• Gain control: Manual gain adjustment to improve image quality in critical environments

• Tone adjustment: Custom saturation, brightness and contrast settings

• Noise reduction and sharpness optimization: Enhanced image clarity and definition for improved inspection readability
